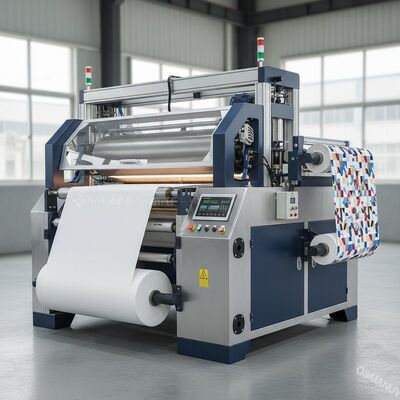

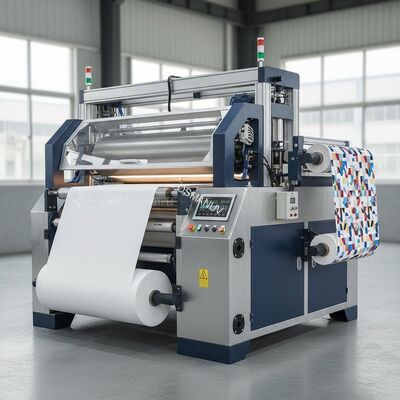

Rotary Heat Press Machine or Fully Automatic Heat Press Roll To Roll Company
Dettagli:
| Luogo di origine: | La Cina |
| Marca: | Osmanuv |
| Certificazione: | ISO9001 |
| Numero di modello: | OSM-FM-1320 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 insieme |
|---|---|
| Imballaggi particolari: | Scatola di legno |
| Tempi di consegna: | 30 - 40 GIORNI DEL LAVORO |
| Termini di pagamento: | T/T, Western Union |
|
Informazioni dettagliate |
|||
| Nome di prodotto: | Attrezzatura UV di trasferimento di cinque lampade | Colore: | Bianco e blu o verde |
|---|---|---|---|
| Tensione: | 50HZ | Alimentazione elettrica: | 380V / 410V |
| Dimensione: | 8000mm×2440mm×2350mm | Materiale: | fabbricazione, acciaio del canale |
Descrizione di prodotto

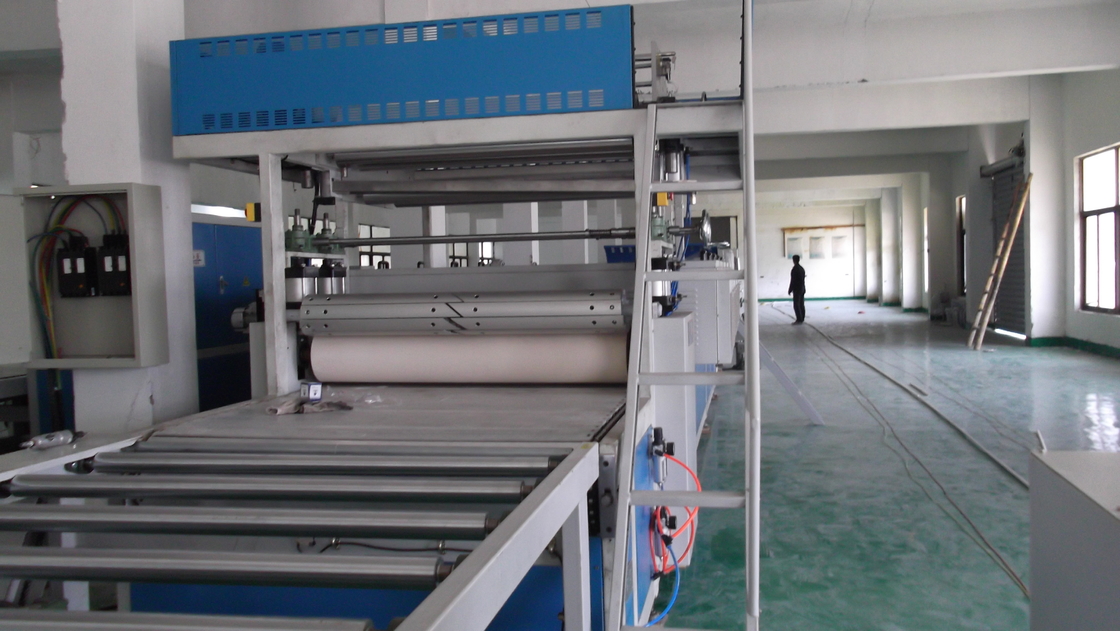

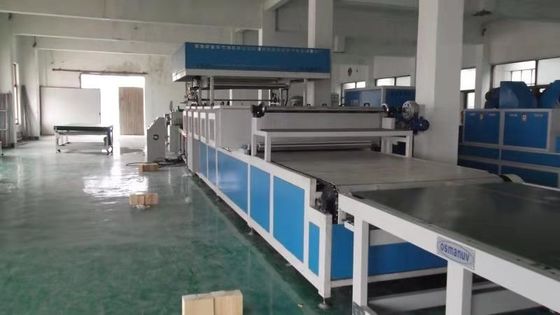

410V 50HZ 3m/Min Roll To Roll Heat Press Machine / Fully Automatic Heat Press
Description:
suitable for all kinds of wood, plastics, ceramics, calcium silicate board, metal and other planes on a layer of UV transfer film, so that the plate surface pattern level more clear, more three-dimensional sense.
Describe
| 1 | Effective working size |
a:Effective width: 1320mm; b: thickness: 2-80mm c: length (shortest) : 300mm |
| 2 |
Power supply voltage: |
360-410V 50HZ |
| 3 | Material: | The shell is made of 1.5mm cold-rolled plate bending and welding, the surface is treated with liquid paint, the frame is made of 100*50mm channel steel, and the supporting wall is made of 20cm steel plate (A3 material). |
| 4 | Coating part | single group roll coating system is adopted, each group system consists of steel roller and silica gel wheel.And a pneumatic device, regulating the regulating wheel, so that paint evenly coated on the film paper. |
| 5 | Fitting part: | double rollers are used to extrude the transfer film to the substrate evenly, and automatic entanglement device is used to prevent the film from wrinkling. |
| 6 | Cots |
The diameter: ￠205mm, length: 1430mm, Japanese high-quality rubber production, wear-resistant, good elasticity, hardness can be customized according to customer requirements (30 degrees - 50 degrees) between, can resist all kinds of solvent using high-quality coupling transmission, bearing KHV bearing, Taiwan TDA frequency converter control cots speed. |
| 7 | Metering wheel: |
diameter: ￠130mm, length: 1430mm, using 45# seamless steel tube by CO² welding, surface fine grinding, do dynamic balance, runout is less than 0.05mm, the surface by hard chrome plating and polishing to achieve bright effect.Direct plug - in connection drive, can really achieve with the drive motor combined into one. |
| 8 | UV part: | 5 sets of independent light boxes, 2 Primarc gallium lamps, 1 Primarc iron lamps, 2 mercury mercury lamps, the height and Angle of the lamps can be adjusted. |
| 9 | UV lampshade | the use of professional reflective materials (Germany Alanod reflective piece) reflect ultraviolet light, durable greatly improve the utilization rate of ultraviolet light (can be increased by more than 30%). |
| 10 | ||
| 11 |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
