Automatic Wood Panel Curtain Coating Line for High-Gloss Surface Furniture Board UV Finishing
Dettagli:
| Luogo di origine: | Cina |
| Marca: | OSMANUV |
| Certificazione: | ISO9001 |
| Numero di modello: | OSM-LT-620 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Imballaggio in legno |
| Tempi di consegna: | 40 giorni |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | Negoziazione |
|
Informazioni dettagliate |
|||
| Nome prodotto: | macchine per rivestimento di tende | Dimensioni: | 38900mm L × 2250mm W × 1650mm H |
|---|---|---|---|
| La trasmissione è limitata: | 620 mm | Velocità della linea di produzione: | 0-10m/min |
| Energia elettrica: | 96 kW | Garanzia: | 1 anno |
| Servizio post-vendita fornito: | Ingegneri disponibili assistere macchinario oltremare, servizio video di manutenzione sul campo supp | Tipo di prodotto: | carta da giornale, macchina per fare la carta, macchina per piatti di carta, carta per appunti, cart |
| Evidenziare: | Automatic wood panel curtain coating machine,UV finishing curtain coating line,High-gloss furniture board coating machine |
||
Descrizione di prodotto

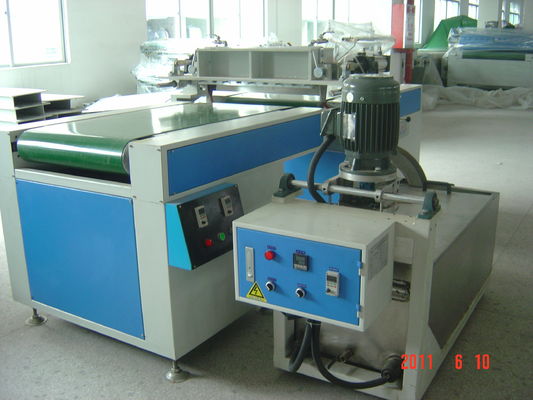

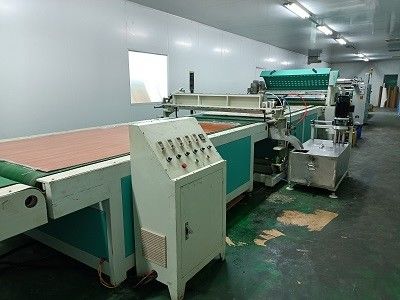

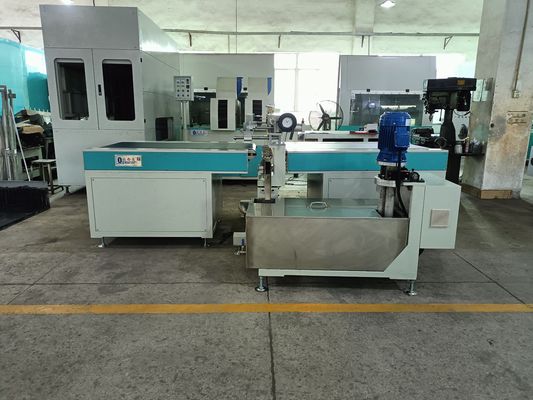

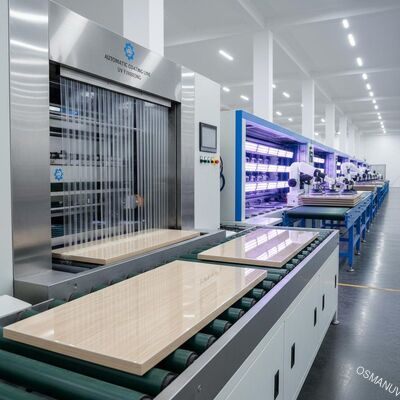

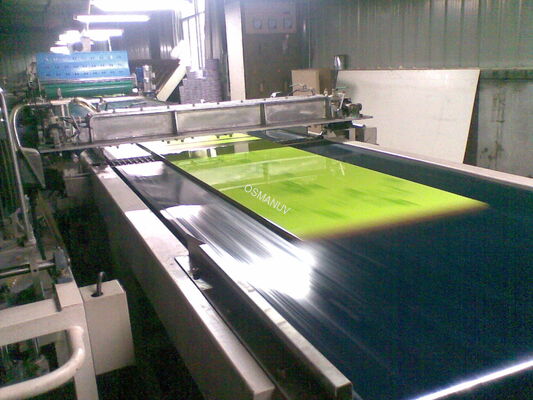

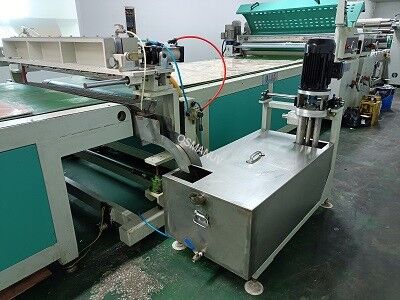

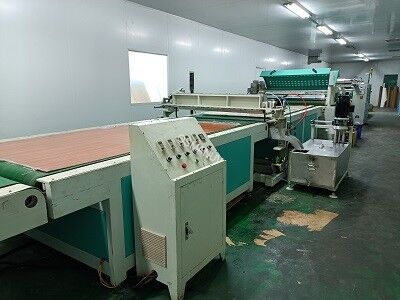

Automatic Wood Panel Curtain Coating Line for High-Gloss Surface Furniture Board UV Finishing
-
Product Description:
Our high-speed automated curtain coating line is engineered for furniture panel, door skin, and laminate flooring manufacturers seeking unparalleled throughput. This system delivers a consistent, high-gloss, or satin finish with exceptional durability, ideal for high-volume production environments. The entire process, from feeding to curing, is seamlessly integrated for maximum efficiency and minimal downtime.
-
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | ACC-2800-Pro |
| Suitable Substrate | MDF, Particle Board, Plywood, Solid Wood Panels |
| Max. Panel Width | 2800 mm (Customizable) |
| Max. Panel Length | 4500 mm (Customizable) |
| Line Speed | 10-40 m/min (adjustable) |
| Coating Material | UV Coatings, PU Coatings |
| Curtain Width | 3000 mm (Standard, Customizable) |
| Control System | PLC + HMI Touch Screen |
-
Application:
Mass production of furniture panels, kitchen cabinets, laminate flooring, door skins, and wall panels.
-
Customization:
We offer extensive customization options including line length, conveyor width, curtain coater head capacity, and specific curing solutions to match your factory layout and product requirements perfectly.
-
Feature:
-
Ultra-High Speed Curtain Coating for maximum output.
-
Precision Curtain Coating Head for uniform film thickness.
-
Energy-Efficient UV Curing System.
-
Fully Automated Conveyor System.
-
-
Support and Services:
Comprehensive package including installation supervision, operator training, remote troubleshooting, and an extensive inventory of spare parts.
-
Packing and Shipping:
All modules are crated in heavy-duty wooden frames with waterproof wrapping for sea freight. Professional export packing ensures safe arrival.
-
FAQ:
Q: Can this line handle different panel sizes without lengthy changeovers?
A: Yes, the conveyor and curtain coating system are designed for quick width adjustments to accommodate various panel sizes, minimizing downtime.
