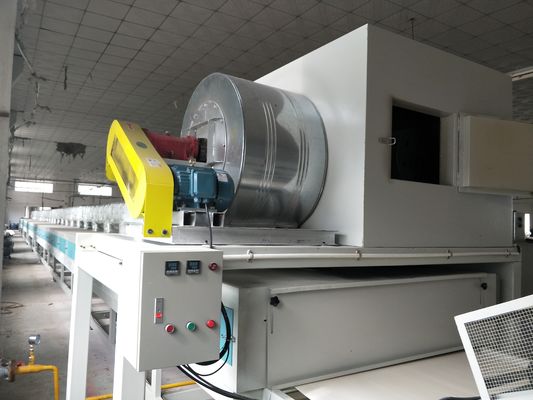

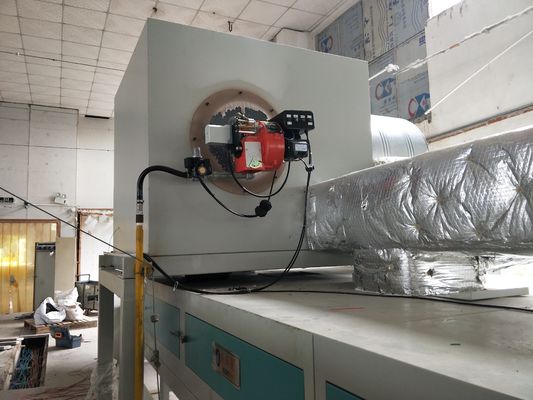

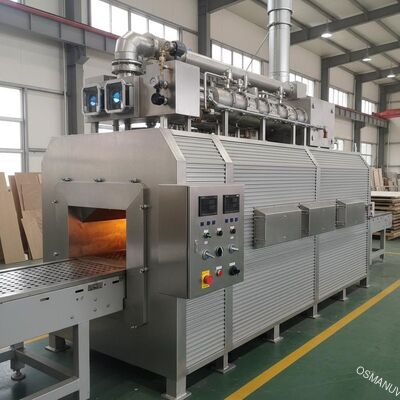

High-Temperature Gas-Fired Drying Machine for Wood Panel Coating Heating
Dettagli:
| Luogo di origine: | Cina |
| Marca: | OSMANUV |
| Certificazione: | ISO9001 |
| Numero di modello: | OSM-TRQ-920 |
| Documento: | Natural Gas Drying Machine.pdf |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Imballaggio in legno |
| Tempi di consegna: | 45 giorni |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | Negoziazione |
|
Informazioni dettagliate |
|||
| Nome prodotto: | Linea della macchina per asciugatura a gas | La trasmissione è limitata: | 920 mm |
|---|---|---|---|
| Velocità della linea di produzione: | 1-20 m/min | Energia elettrica: | 35.5kw |
| Dimensione della macchina: | 90000mm*1650mm*2250mm | Ciclo di produzione: | 35-45 giorni |
| Condizione: | Nuovo | Garanzia: | 1 anno |
| Evidenziare: | gas-fired wood panel drying tunnel,high-temperature MDF curing oven,industrial particle board finishing oven |
||
Descrizione di prodotto
High-Temperature Gas-Fired Drying Machine for Wood Panel Coating Heating
-
Product Description:
This heavy-duty gas-fired drying machienne is designed for the rapid heating of coatings on wood-based panels like MDF, particle board, and HDF. It provides the high temperatures and intense air movement required to quickly cross-link, water-based, and solvent-based coatings, resulting in a durable, scratch-resistant finish. The direct-fired system offers maximum thermal efficiency for demanding factory environments.
-
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | OSM-TRQ-920 |
| Suitable Product | MDF, Particle Board, HDF, Plywood Panels |
| Heat Source | Direct Gas-Fired Air Make-up System |
| Max. Operating Temp | 250°C |
| Conveyor Width | 2200 mm (Customizable) |
| Panel Thickness | 3mm - 50mm |
| Energy Recovery | Optional Air-to-Air Heat Exchanger |
| Control System | PID temperature control with data logging |
-
Application:
Curing painted or coated furniture panels, cabinet doors, laminate flooring, and other engineered wood products.
-
Customization:
The tunnel is highly customizable. Options include different conveyor systems (chain, roller, flat-top), varying heat recovery systems to improve efficiency, and custom lengths to achieve the required cure time at your line speed.
-
Feature:
-
Fast Curing Times: High air temperature and velocity drastically reduce curing time.
-
High Efficiency: Direct-fired system puts 100% of the heat into the oven.
-
Robust Construction: Built to withstand harsh industrial conditions.
-
Enhanced Safety: Integrated flame supervision and fire suppression systems.
-
-
Support and Services:
Commissioning by certified engineers, compliance documentation for safety systems, and preventative maintenance contracts.
-
Packing and Shipping:
Major structural sections are pre-assembled. Internal components like burners and fans are packed securely within the sections to minimize site work.
-
FAQ:
Q: Is a direct-fired system safe for curing coatings?
A: Yes, when designed correctly. Our systems use 100% fresh air make-up, and the combustion gases are thoroughly mixed and diluted to safe levels before contacting the product. This is a standard and efficient method for industrial curing ovens.
