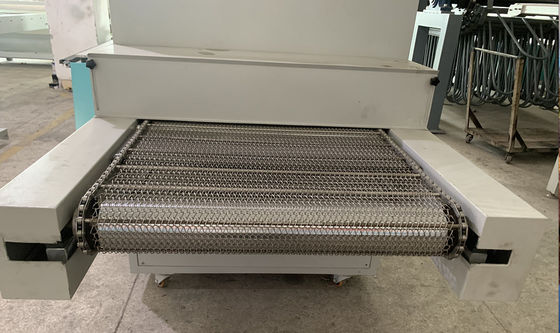

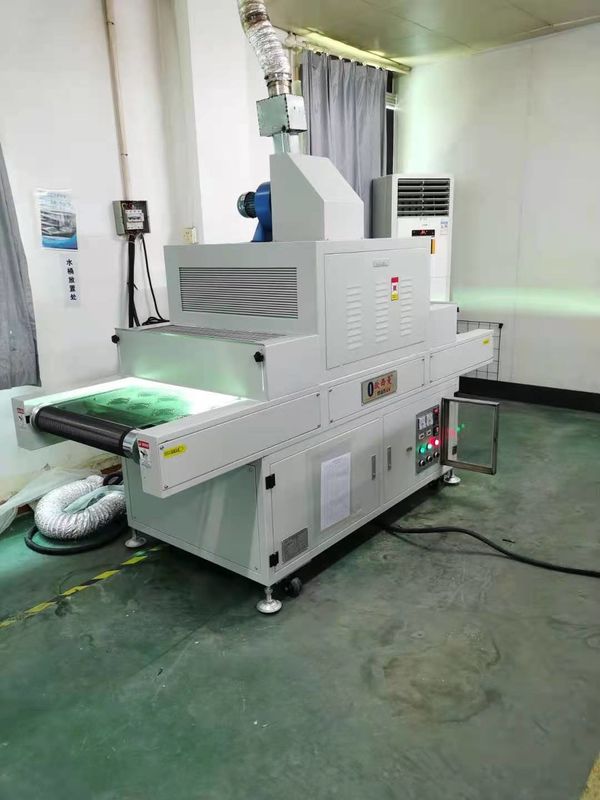

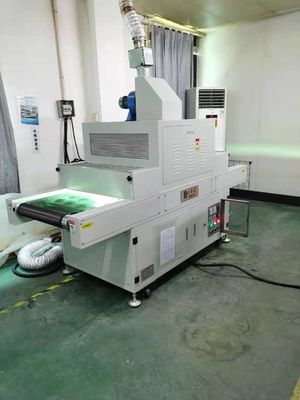

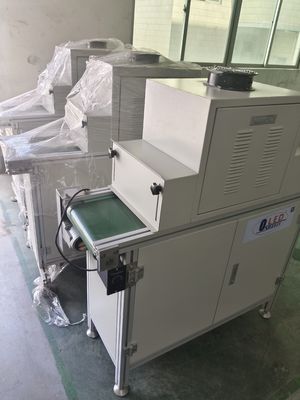

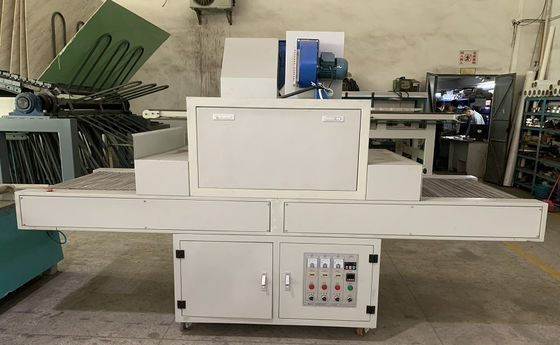

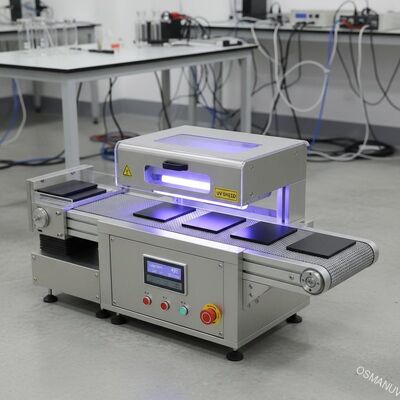

Compact UV Curing Machine for Flat Panels | R&D and Small-Batch Production Composition of Production Line
Dettagli:
| Luogo di origine: | Cina |
| Marca: | OSMANUV |
| Certificazione: | ISO9001 |
| Numero di modello: | OSM-UVA-802T |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Scatola di legno |
| Tempi di consegna: | 30~45 giorni |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | Negoziazione |
|
Informazioni dettagliate |
|||
| Sistema di controllo: | Plc | Materiale di rivestimento: | Vernice UV |
|---|---|---|---|
| Tipo: | Macchina per la cura UV | Colore stampato: | 1-8 colori |
| Larghezza di lavoro: | 600 mm | Larghezza del rivestimento: | personalizzabile, 1320 mm |
| Materiale di cintura a maglia: | Teflon resistente alle alte temperature | Sistema di raffreddamento: | Raffreddamento d'aria |
Descrizione di prodotto
Compact UV Curing Machine for Flat Panels | R&D and Small-Batch Production Composition of Production Line
Product Description
Ideal for R&D and small-scale production, this compact UV curing machine offers precision curing for solvent-based coatings on furniture panels, PVC, and other flat substrates. Its flexible design supports low-volume orders and experimental coating formulations.
Technical Parameters
| Parameter | Details |
|---|---|
| Model | UV-CP300 (Standard Model, Customizable) |
| UV Source | LED or Mercury Lamp (Customizable) |
| Effective Width | 400-800 mm (Customizable) |
| Curing Speed | 0.5-5 m/min |
| Power Requirements | 220V/380V (selectable) |
Application
-
Prototype development for coated panels
-
Small-batch UV curing for furniture
-
Educational and laboratory use
Customization
-
Fully customizable UV wavelength and intensity
-
Adjustable conveyor and lamp height
Feature
-
Compact and space-saving design
-
Low energy consumption
-
Easy-to-use interface
Support and Services
-
Online training and troubleshooting
-
1-year warranty
-
Lifetime technical consultation
Packing and Shipping
-
Foam-insulated wooden boxes
-
Quick-delivery options
FAQ
-
Q: Can it test different UV intensities?
A: Yes, intensity and speed are fully customizable for testing. -
Q: What is the lead time for custom orders?
A: Typically 3-4 weeks for customized configurations.
