Cost-Effective Natural Gas Drying for Enhanced Calcium Silicate Board Production
Dettagli:
| Luogo di origine: | Cina |
| Marca: | OSMANUV |
| Certificazione: | ISO9001 |
| Numero di modello: | OSM-LRHG-1320T |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Imballaggio in legno |
| Tempi di consegna: | 35 giorni |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | Negoziazione |
|
Informazioni dettagliate |
|||
| Nome prodotto: | Asciugatrice a gas naturale da 28 metri | Dimensione (l*w*h): | Dimensioni personalizzate: 28.000 mm * 2.400 mm * 3.140 mm |
|---|---|---|---|
| Energia: | 24kW | Voltaggio: | 380 V/50Hz |
| Larghezza del rivestimento: | 1320mm | Velocità di rivestimento: | regolabile, 0,5-8 m/min |
| Garanzia: | 1 anno | Condizione: | Nuovo |
| Evidenziare: | natural gas drying machine,industrial calcium silicate board dryer,cost-effective gas drying equipment |
||
Descrizione di prodotto
Cost-Effective Natural Gas Drying for Enhanced Calcium Silicate Board Production
Product Description
This natural gas drying line is specifically engineered for calcium silicate boards, providing uniform heat distribution and precise temperature control throughout the drying process. The system ensures optimal moisture removal while maintaining board integrity and dimensional stability.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model |
OSM-LRHG-1320T |

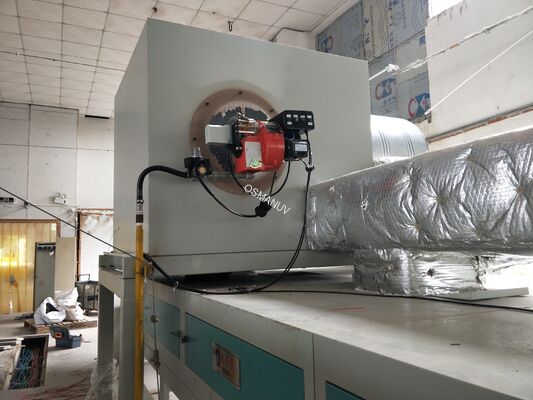

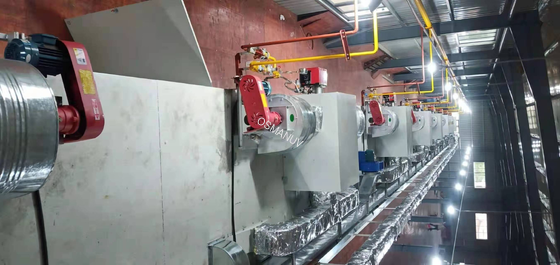

| Heating Source | Natural Gas Burner System |
| Maximum Temperature | 300°C |
| Conveyor Width | 1320 mm (Customizable) |
| Drying Zones | 6 zones (Customizable) |
| Fuel Consumption | 15-25 m³/h |
| Control System | PLC + HMI Touch Screen |
Application
Drying and curing of calcium silicate boards, fireproof panels, and architectural ceiling materials.
Customization
-
Customizable drying zone configuration
-
Customizable conveyor speed and width
-
Customizable temperature profiling
Feature
-
Uniform heat distribution
-
Precise temperature control
-
Energy efficient operation
-
Robust construction
Support and Services
-
Installation supervision
-
Operator training program
-
12-month warranty
-
Technical support
Packing and Shipping
-
Heavy-duty wooden crate
-
Weatherproof packaging
-
Professional export standards
FAQ
Q: What is the energy consumption rate?
A: Average consumption is 18-22 m³/h depending on production requirements.
