High Speed Food Grade UV Sterilization Machine for 99.9% Pathogen Elimination
Dettagli:
| Luogo di origine: | Cina |
| Marca: | OSMANUV |
| Certificazione: | ISO9001 |
| Numero di modello: | OSM-UVC40-500AL |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Imballaggio in legno |
| Tempi di consegna: | 30 giorni |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | Negoziazione |
|
Informazioni dettagliate |
|||
| Dimensione (L*W*H): | Dimensioni personalizzate, 3000 mm * 700 mm * 1350 mm | Larghezza efficace: | 500 mm |
|---|---|---|---|
| Voltaggio: | 380V/60Hz | Velocità di rivestimento: | regolabile, 1-10 m/min, può essere impostato da solo |
| Materiale: | SUS 304 Acciaio inossidabile | Servizio post-vendita fornito: | Supporto tecnico video |
| Condizione: | NUOVO | Garanzia: | 1 anno |
| Evidenziare: | UV sterilization machine food grade,high speed UV pathogen eliminator,UV curing machine with warranty |
||
Descrizione di prodotto

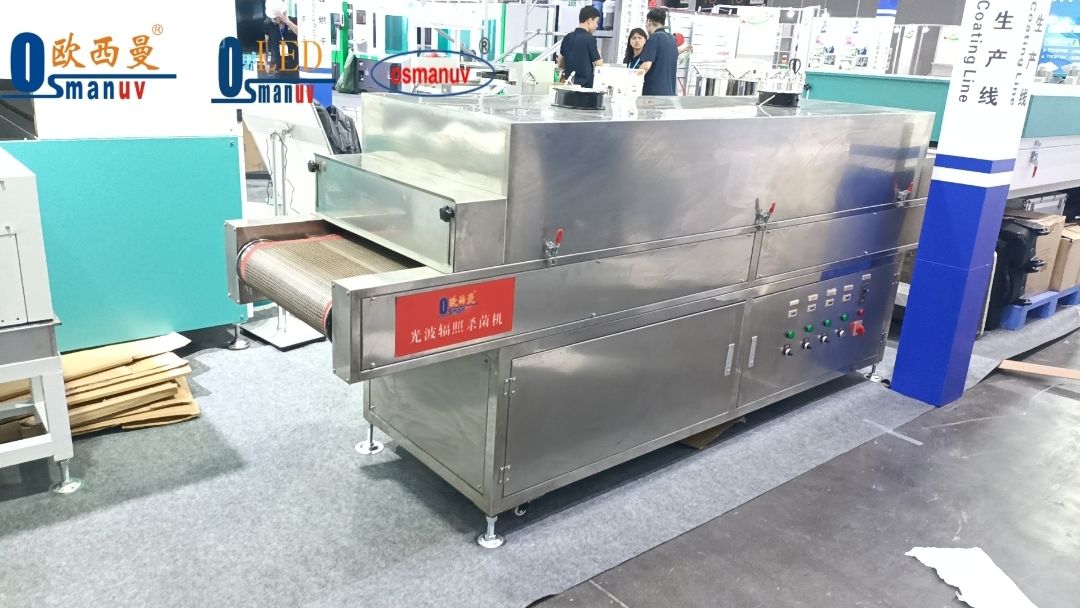

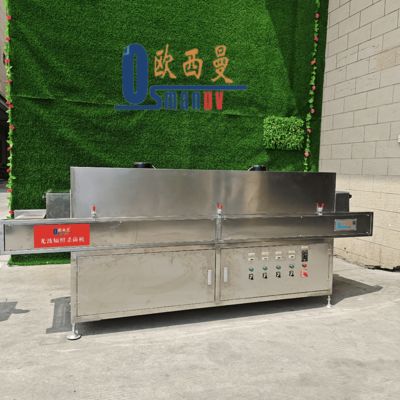

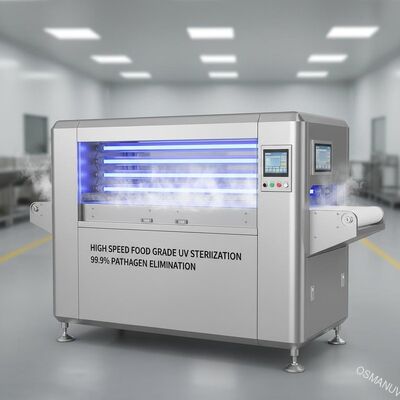

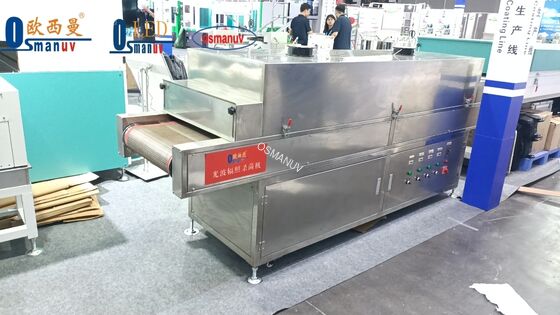

High Speed Food Grade UV Sterilization Machine for 99.9% Pathogen Elimination
Product Description:
This food-grade UV sterilization machine is engineered for high-speed, non-thermal sterilization of food products and packaging. Utilizing 40 powerful 30W UVC lamps arranged above and below the conveyor, it ensures thorough 360-degree exposure, effectively eliminating up to 99.9% of bacteria, viruses, and molds without chemicals or heat, preserving product quality and extending shelf life.
Technical Parameters:
| No. | Parameter Name | Specification |
|---|---|---|
| 1 | Model | OSM-UVC40-500AL |
| 2 | Machine Dimensions (LWH) | 3000mm * 700mm * 1350mm |
| 3 | Effective UV Sterilization Zone | 2000mm |
| 4 | Conveyor Belt | Food-Grade Teflon Mesh Belt |
| 5 | Conveyor Speed | 1-10 m/min, Stepless Speed Regulation |
| 6 | UVC Lamps | 40 x 30W Germicidal Lamps |
| 7 | Material | Full SUS 304 Stainless Steel |
| 8 | Power Supply | 380V, 60Hz |

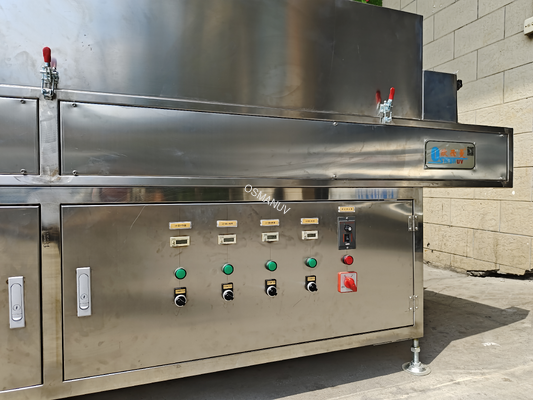

| 9 | Control System | PLC Control Panel with Timer |
Application:
Ideal for surface sterilization of ready-to-eat foods, fruits, vegetables, baked goods, meat packaging trays, and food containers.
Customization:
We offer customizable conveyor speeds, tunnel lengths, and UV intensity settings to achieve the specific Log reduction required for your products.
Feature:
-
Dual-sided UV irradiation for maximum microbial kill rate.
-
Constructed with full SUS 304 stainless steel for hygiene and durability.
-
PLC-controlled for precise operation and repeatable results.
-
Non-thermal process preserves food flavor, texture, and nutritional value.
Support and Services:
-
One-year full machine warranty, half-year for electrical components.
-
Lifetime technical support and remote troubleshooting.
-
Guidance on lamp replacement and preventive maintenance.
Packing and Shipping:
The machine is securely packed in a wooden crate for safe transport. It is available as stock, with shipment within 3 working days after full payment.
FAQ:
-
Q: What is the efficiency of this machine against E. coli and Salmonella?
A: The system is designed to achieve a 99.9% (3-log) reduction or higher on such pathogens with appropriate exposure time (conveyor speed). -
Q: Can the machine be integrated into our existing production line?
A: Yes, the height and conveyor speed are customizable for seamless integration.
