Energy-Saving UV-LED Curing System | Low-Temp & High-Efficiency Curing Solution for Solvent-Based Coatings
Dettagli:
| Luogo di origine: | Cina |
| Marca: | OSMANUV |
| Certificazione: | ISO9001 |
| Numero di modello: | OSM-GH-1320 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 INSIEME |
|---|---|
| Prezzo: | Negoziabile |
| Imballaggi particolari: | scatola di legno |
| Tempi di consegna: | 30~45 giorni |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | Negoziazione |
|
Informazioni dettagliate |
|||
| Velocità di rivestimento: | regolabile, 1-15 metri/min | Materiale di rivestimento: | Vernice UV |
|---|---|---|---|
| Tipo: | Macchina per la polimerizzazione | Componenti principali: | Motore, Motore |
| Applicazione: | Stampa, rivestimento, polimerizzazione dell'adesivo | Processo: | Semplice |
| Grado automatico: | Completamente automatico | Sorgente luminosa: | Luce UV |
| Evidenziare: | UV-LED curing system for coatings,low-temperature UV curing machine,energy-efficient UV curing solution |
||
Descrizione di prodotto

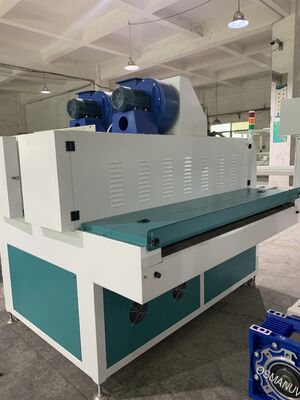

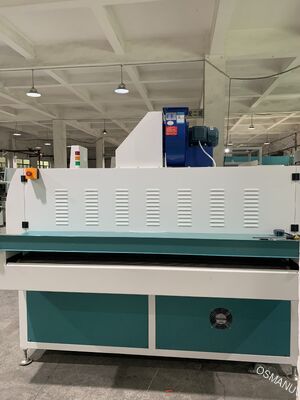

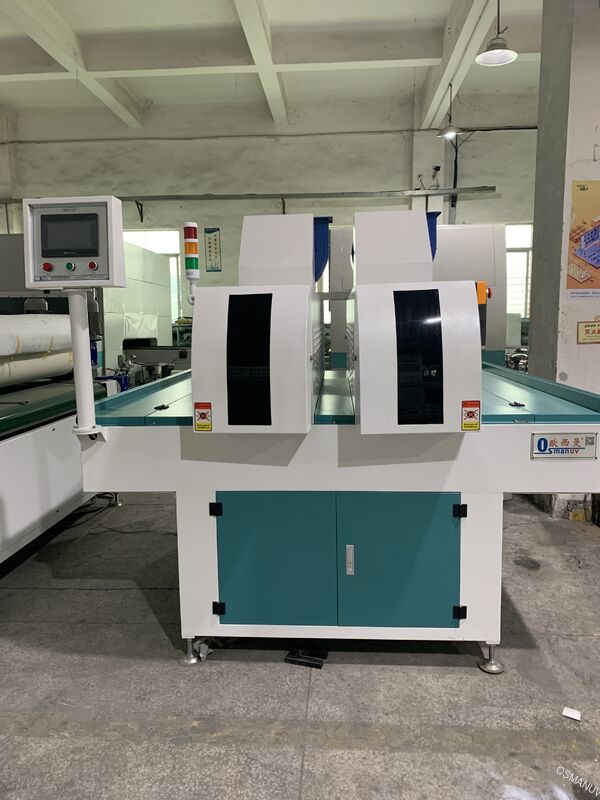

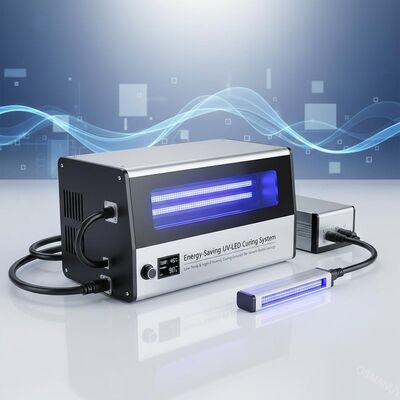

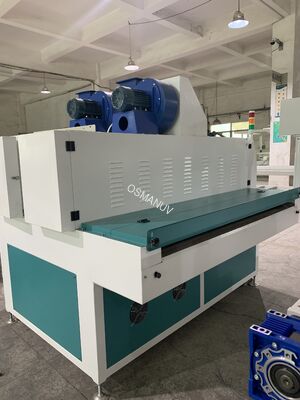

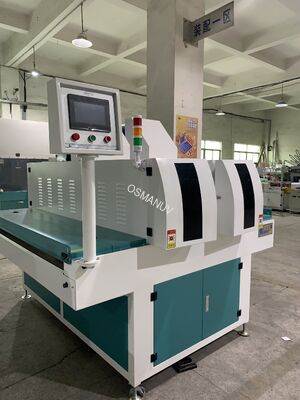

Energy-Saving UV-LED Curing System | Low-Temp & High-Efficiency Curing Solution for Solvent-Based Coatings
1. Composition of Production Line
A modern system with a UV-LED array module, an air-cooling system, a conveyor, a dedicated LED driver/power supply, and a smart control system with instant on/off.
2. Product Description
Provides an efficient, low-heat solution for curing solvent-based coatings. UV-LEDs emit minimal infrared, preventing heat damage to sensitive substrates while offering significant energy savings and immediate operation.
3. Technical Parameters
| Parameter Category | Specification |
|---|---|
| Model | UVLED-EC-1000 |
| Curing Width | 1000 mm [Customizable] |
| UV-LED Wavelength | 395 nm or 365 nm (other customizable) |
| UV-LED Irradiance | Up to 5000 mW/cm² |
| Heat Output | Very low (cold cure process) |
| Conveyor Speed | 1 - 15 m/min |
| Power Consumption | Up to 70% lower than conventional UV |
| Lifetime | LED: 20,000+ hours |
4. Application
Heat-sensitive applications: Plastic coatings, Prefinished wood, Electronic assemblies, Graphics.
5. Customization
Highly customizable: specific UV wavelengths, irradiance profiles, working distance, modular design for expansion.
6. Features & Advantages
-
Ultra-Low Heat: Prevents substrate warping.
-
Instant On/Off: No warm-up/cool-down.
-
Long Lifetime: Low maintenance, reduces TCO.
-
Eco-Friendly: Lower energy use, no mercury.
7. Support and Services
-
Application testing support.
-
Long-term warranty on LED modules.
-
Energy-saving audit.
8. Packing and Shipping
Compact, lightweight for simpler packing and lower shipping cost.
9. FAQ
-
Q: Are all solvent-based coatings curable with UV-LED?
-
A: Coatings must match the LED's wavelength. We offer customizable wavelength options and assist with selection.
-
-
Q: Main cost benefits?
-
A: Drastically lower energy bills, no lamp replacement, reduced cooling needs.
-
-
Q: Can it be retrofitted?
-
A: Yes, compact size allows straightforward retrofitting with custom mounting solutions.
-
