Lab-Scale Infrared Drying System for Molded Pulp Coating – Compact Experimental Oven
Dettagli:
| Luogo di origine: | Cina |
| Marca: | OSMANUV |
| Certificazione: | ISO9001 |
| Numero di modello: | OSM-IR-200 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 insieme |
|---|---|
| Prezzo: | Negoziabile |
| Imballaggi particolari: | SCATOLA IN LEGNO |
| Tempi di consegna: | 30 ~ 40 giorni |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | Negoziazione |
|
Informazioni dettagliate |
|||
| Energia: | 4,5KW | Intervallo di temperatura di asciugatura: | 30°C - 150°C |
|---|---|---|---|
| Tipo: | Macchina per asciugatura | Capacità di asciugatura: | 50 kg/ora |
| Tensione operativa: | 220 V/380 V | Fonte di riscaldamento: | Elettricità |
| Sistema di controllo: | Termoregolatore digitale | Metodo di essiccazione: | Radiazione a infrarossi |
| Evidenziare: | Lab-scale infrared drying oven,Infrared drying system for molded pulp,Compact experimental drying oven |
||
Descrizione di prodotto

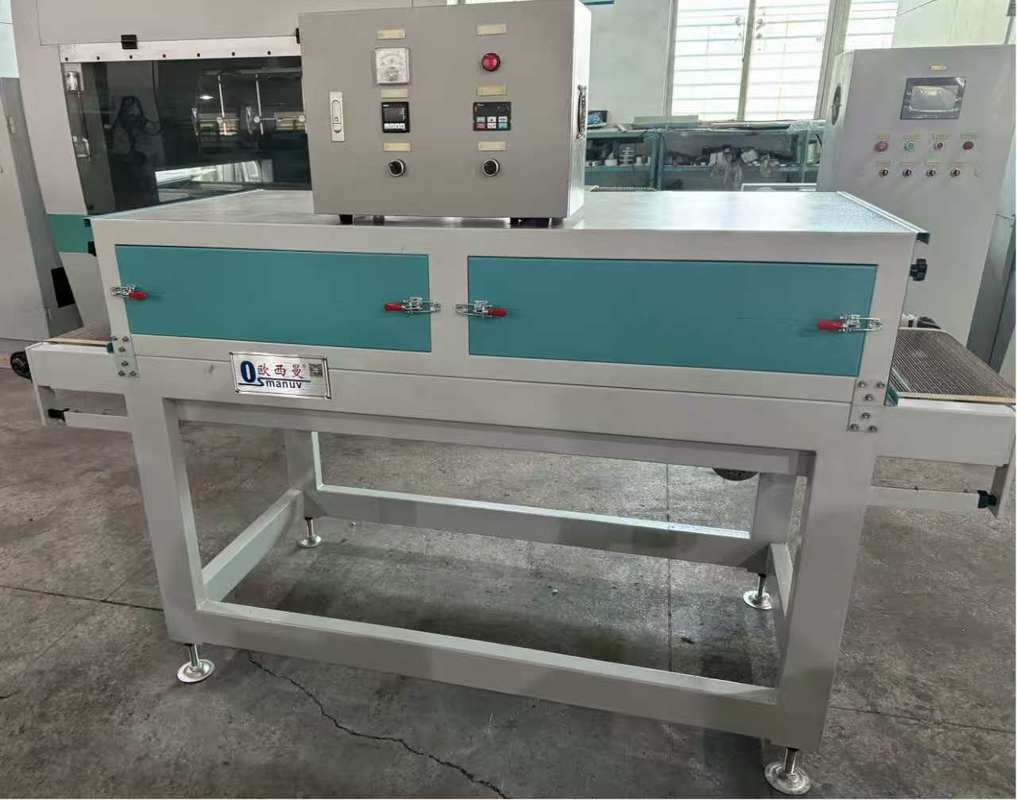

Lab-Scale Infrared Drying System for Molded Pulp Coating – Compact Experimental Oven
Composition of Production Line
-

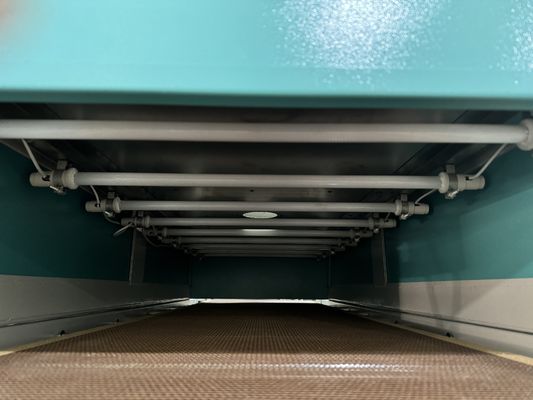

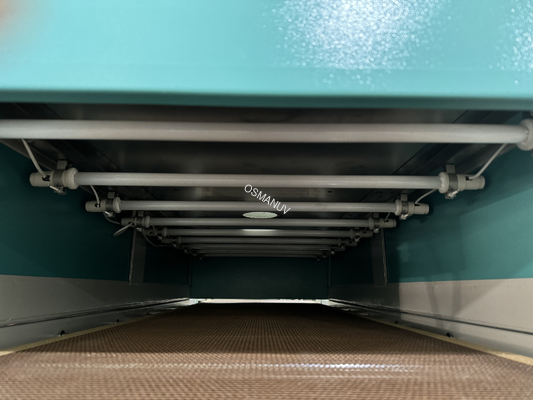

Infrared heating module (medium-wave / short-wave swappable)
-

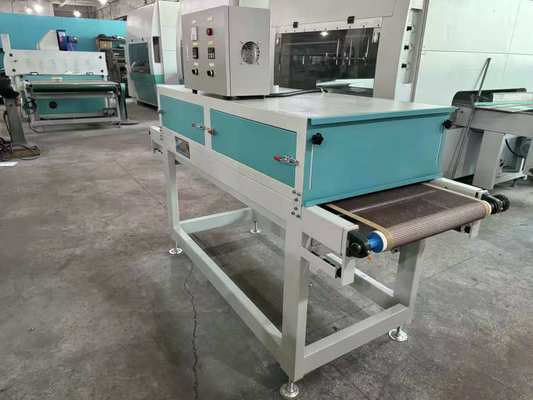

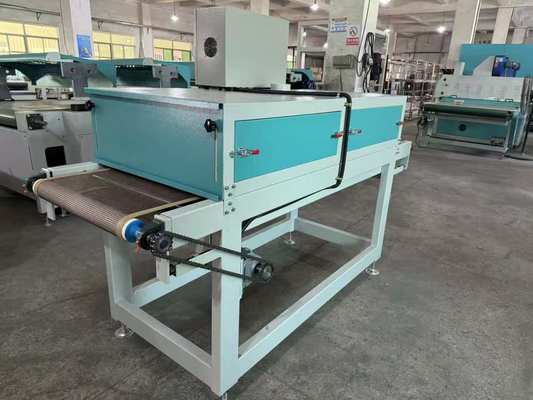

Adjust-height conveyor belt (stainless steel or PTFE mesh)
-
Temperature & air velocity controller
-
Sample tray with positioning guide
-
Fume exhaust hood (optional)
-
Touchscreen HMI with data logging
Product Description

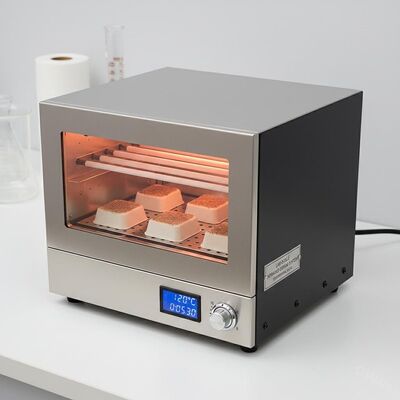

This bench-top or floor-standing experimental infrared dryer is specifically designed for R&D of coatings on molded pulp products (e.g., disposable tableware, food containers, industrial packaging). It simulates industrial drying conditions while allowing precise adjustment of IR intensity, belt speed, and drying zone length – ideal for optimizing coating formulations (water-based, UV-curable, or gloss/matte topcoats) before scaling up to production lines.
Technical Parameters (Table)
| Parameter | Value / Range |
|---|---|
| IR lamp type | Medium-wave (2–2.5µm) / Short-wave (0.8–1.2µm) – selectable |
| Max. heating power | 3 kW (customizable up to 6 kW) |
| Temperature range | Ambient – 200°C (±2°C) |
| Effective drying width | 300 mm (customizable: 200–600 mm) |
| Belt speed | 0 – 3 m/min (infinitely adjustable) |
| Drying zone length | 1 m (modular, expandable) |
| Sample thickness max | 50 mm |
| Power supply | 220V / 50Hz (or 110V) |
| Dimensions (L×W×H) | 1500 × 600 × 1200 mm (customizable) |
Application
-
Drying water-based primers & topcoats on molded pulp plates/bowls
-
Curing UV-excimer skin-feel coatings (small batch testing)
-
Heat-setting of anti-moisture & anti-static coatings
-
Academic research on pulp coating drying kinetics
-
Quality lab for disposable packaging manufacturers
Customization
Fully customizable configuration: choose IR lamp wavelength (short, medium, or carbon), add an extra heating zone, change belt material (PTFE, metal mesh, or solid), or integrate a cooling section. We also offer customizable software for programmable drying profiles (ramp-soak cycles). The system can be built as a glovebox-compatible unit for solvent-sensitive coatings.
Feature
-
Instant on/off response – no preheating delay
-
Uniform radiation field ±5% across belt width
-
Low thermal inertia – safe for heat-sensitive pulp substrates
-
Real-time temperature feedback & over-temperature protection
-
Compact size fits on a lab bench or mobile cart
Support and Services
-
Remote installation video & commissioning guide
-
Free coating drying consultation (your formulation)
-
12-month warranty, extendable customizable plan
-
Spare IR lamp kit included
-
24/7 email & chat support
Packing and Shipping
-
Foam-lined plywood case with antistatic bag
-
Shipped by air or sea (FOB preferred)
-
Lead time: 15–25 working days
-
Shipping documents: CE declaration, manual, calibration certificate
FAQ
Q: Can this dryer handle both flat and 3D molded pulp products?
A: Yes, the belt height is customizable and we provide sample jigs for curved bowls.
Q: Does it work for UV coatings?
A: For UV curing we can add a UV LED module – fully customizable hybrid IR+UV system.
Q: What is the minimum test sample size?
A: 50 × 50 mm; no upper limit except belt width.
