Industrial Rotary Spray Coating Line for Waterproof Pulp Molded Packaging - Heavy-Duty Solution
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Osmanuv |
| Certificazione: | CE |
| Numero di modello: | OSM-TXT-1024T |
| Documento: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Scatola di legno |
| Tempi di consegna: | 45 giorni |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | Negoziazione |
|
Informazioni dettagliate |
|||
| Sicurezza ricoprente: | Alta sicurezza | Utilizzo: | Pannello piatto |
|---|---|---|---|
| Rullo della spazzola: | 200 mm | Potenza della lampada UV: | 5KW |
| Tipo di luci: | Lampada UV | Efficienza del rivestimento: | Alta efficienza |
| velocità di trasporto: | 25 - 80 m/min | Rapporto di test dei macchinari: | Fornito |
| Evidenziare: | industrial rotary spray coating line,waterproof pulp molded packaging machine,heavy-duty pulp molding coating machine |
||
Descrizione di prodotto
Industrial Rotary Spray Coating Line for Waterproof Pulp Molded Packaging - Heavy-Duty Solution
Keywords: industrial pulp coating machine, waterproof rotary spray line, customizable coating equipment

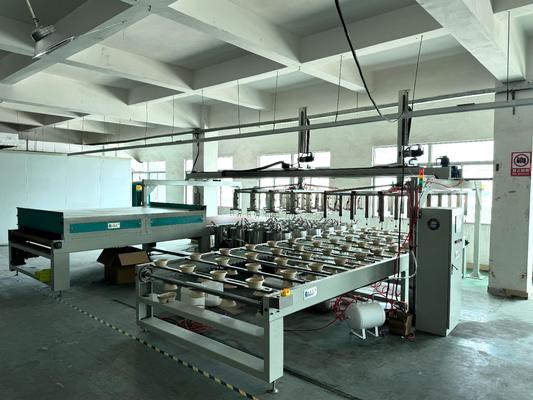

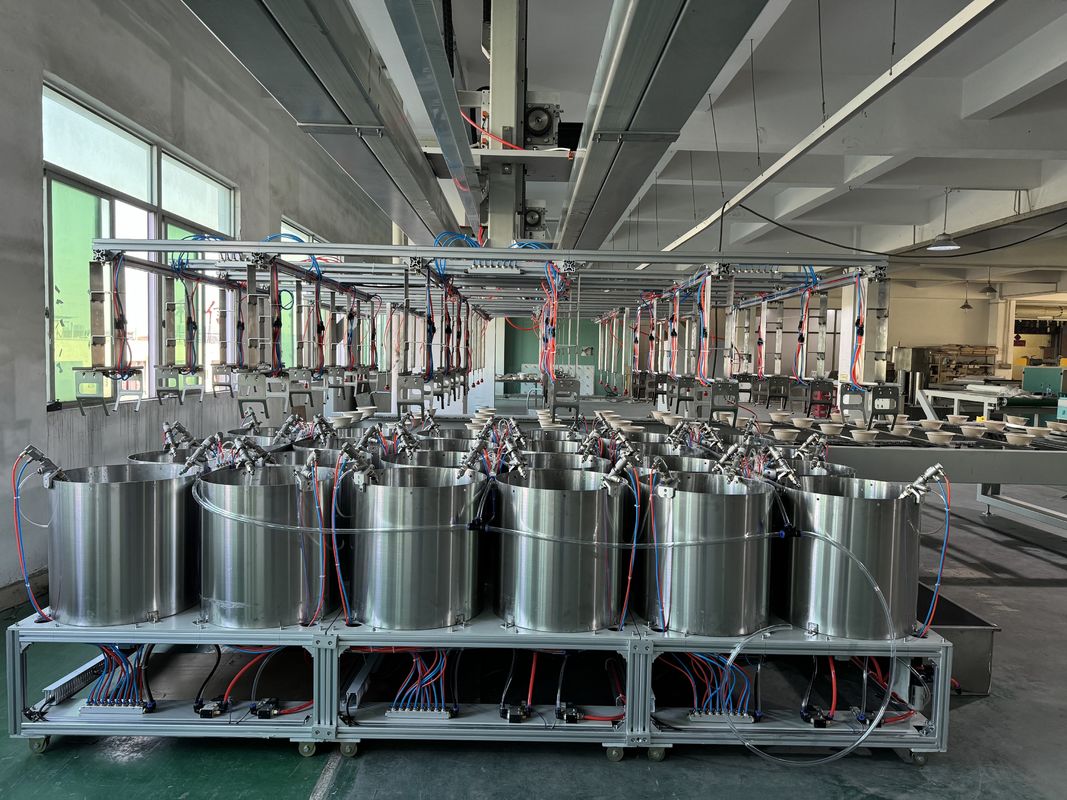

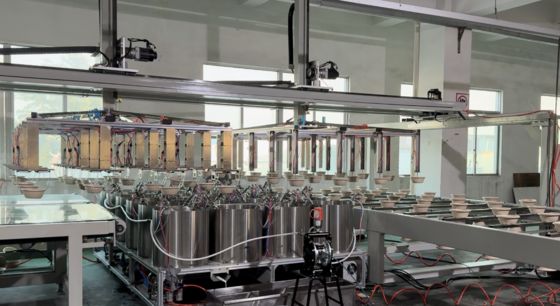

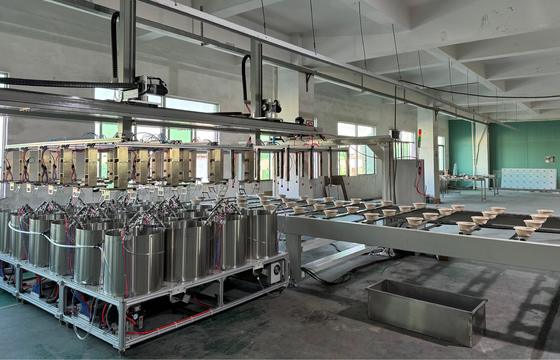

Composition of Production Line:
Robotic loading arm, high-volume rotary spray stations, IR pre-drying tunnel, final curing oven, manual unloading conveyor.
Product Description:
Designed for industrial pulp molded packaging (e.g., electronic cushioning, automotive parts), this line applies robust internal waterproof coatings with superior adhesion and resistance.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Coating Capacity | 500-2000 pcs/hour (customizable) |
| Coating Thickness | 0.05-0.3 mm (adjustable) |
| Air Pressure | 0.6-0.8 MPa |
| Power Consumption | 25-60 kW (depending on configuration) |
| Control System | Mitsubishi PLC + 10" HMI |
| Coating Type | Water-based PU, acrylic (customizable) |
| Footprint | ~15m x 5m x 3m (customizable) |
Application:
Waterproofing for industrial pulp packaging (edge protectors, corner pads, custom cushioning).
Customization:
Customizable spray head configuration, drying power, and automation level for specific industrial needs.
Feature:
-
Hardened steel construction for durability
-
High-viscosity coating capability
-
Easy maintenance access
-
Low VOC emission design
Support and Services:
On-site commissioning, spare parts kit, operational training, video support.
Packing and Shipping:
Weather-proof wooden crates, anti-rust treatment for all metal parts.
FAQ:
Q: What coating materials are supported?
A: The system is customizable for various water-based coatings per your requirements.
