Rotary Spin Coating System for Pulp Molded Products: Biodegradable Film Precision Application Machine for Sustainable Packaging
Dettagli:
| Luogo di origine: | Cina |
| Marca: | OSMANUV |
| Certificazione: | ISO9001 |
| Numero di modello: | OSM-TXT-3200T |
| Documento: | Version 2.0 of 24-station s...on.pdf |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Imballaggio in legno |
| Tempi di consegna: | 60 giorni |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | Negoziazione |
|
Informazioni dettagliate |
|||
| Voltaggio: | 220V, 380 V, 380 V/220V, 220V/380V, 380V/50Hz | Condizione: | Nuovo |
|---|---|---|---|
| Servizio post-vendita fornito: | Ingegneri disponibili per il servizio di macchinari all'estero, supporto tecnico video, supporto | Dimensione (l*w*h): | Dimensione personalizzata, 2580*1130*1140mm, 1000*2575*1750mm, 1200*620*550mm (L*W*H), 1030*1000*620 |
| Garanzia: | 1 anno, un anno, 12 mesi | Energia: | 3KW, 16KW, 65.3kW, 4,2kW, 0,75kW/220V/50Hz |
| Nome prodotto: | Linea della macchina per rivestimento spin a 24 stazioni | ||
| Evidenziare: | rotary spin coating system for pulp molding,biodegradable film precision application machine,pulp molding coating machine with warranty |
||
Descrizione di prodotto

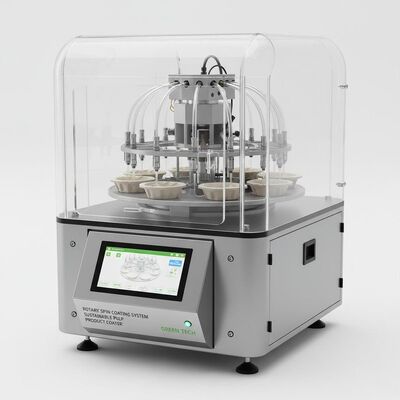

Rotary Spin Coating System for Pulp Molded Products: Biodegradable Film Precision Application Machine for Sustainable Packaging

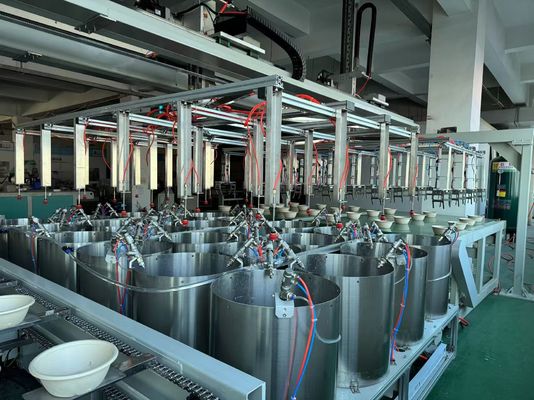

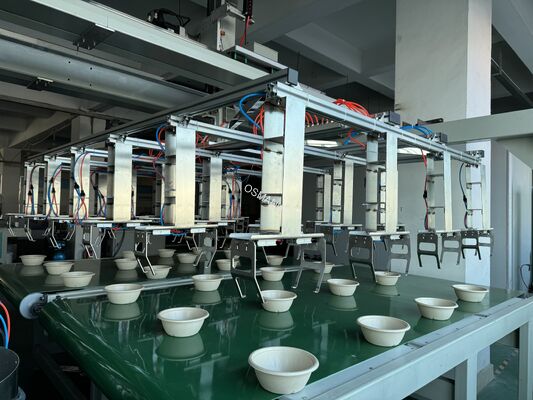

- Composition of Production Line:
This precision line features a servo-driven indexing system, 24 individually programmable stations, high-precision ultrasonic spray or low-flow spray valves for minimal waste, a controlled climate pre-dry zone, a energy-efficient UV-LED curing tunnel (for UV-curable bio-coatings), and a final cooling conveyor.
-
Product Description:
This advanced rotary spin coating line is designed for applying the latest biodegradable, compostable, or UV-curable coatings to premium and sustainable pulp packaging. It focuses on precision application to minimize material usage—a critical cost factor for specialty coatings—while ensuring perfect performance. Ideal for high-value products in the electronics, cosmetic, and organic food sectors. -
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | OSM-XT-3200T |

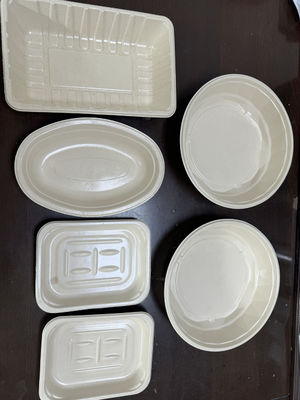

| Suitable Product | Premium Pulp Packaging, Electronics Trays, Cosmetic Containers |
| Number of Stations | 24 |
| Coating Technology | Programmable Ultrasonic Spray / Low-Flow Spin Coating |
| Coating Type | Biodegradable (PLA, PHA), Water-Based, UV-Curable |
| Curing Method | Customizable (UV-LED, NIR, or Low-Temp Hot Air) |
| Control System | Advanced PLC with IoT connectivity for data monitoring |
| Coating Weight Accuracy | ±2% |
-
Application:
Applying ultra-thin, functional barriers and aesthetic coatings to premium pulp molded products requiring home or industrial compostability certifications. -
Customization:
Highly customizable based on coating chemistry. Options include ultrasonic spray heads for ultra-low viscosity materials, UV-LED curing for instant cure, or NIR for gentle drying of heat-sensitive biopolymers. -
Feature:
-
Precision Application: Ultrasonic spin coating technology drastically reduces overspray and material consumption.
-
Sustainable Focus: Compatible with the latest bio-based and compostable coating formulations.
-
Gentle Curing: UV-LED or NIR options prevent thermal degradation of sensitive pulp substrates.
-
Data Tracking: IoT connectivity allows for monitoring of production metrics and quality control.
-
-
Support and Services:
Extensive application development support, partnership with coating material suppliers, and remote diagnostics. -
Packing and Shipping:
High-precision spray valves are shipped in separate, shock-proof packaging. The entire system is covered for dust and moisture protection. -
FAQ:
Q: Can this line handle very thin, water-based coatings without clogging?
A: Yes. The ultrasonic spin coating technology is specifically designed for low-viscosity, particle-free fluids and is far less prone to clogging than conventional air spray nozzles, ensuring consistent application and minimal maintenance.
